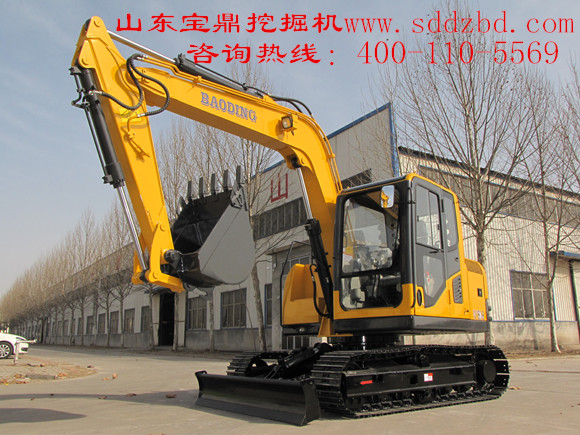

一、 外形尺寸 OVERALL DIMENSIONS

A

履带接地长度 Grounding length of   crawler

2200mm

B

配重离地间隙  Ground clearance of balance weight

825mm

C

尾部回转半径  Tail swing radius

1750mm

D

上端宽度  Overall width of upperstructure

2190mm

E

总高（驾驶室端部）  Overall height(to top of cab)

2650mm

F

小离地间隙  Min.Ground clearance

385mm

G

轨距Track gauge

1750mm

H

总长    Overall length

6100mm

I

总高（动臂端部）  Overall height(to top of boom)

2400mm

J

履带板宽度    Width of crawler board总宽  Overall width

450mm

K

总宽 Overall width

2200mm

动臂长度  Length of movable arm

3720mm

斗杆长度  Length of bucket arm

1620mm

二、作业范围 单位 WORKING RANGES

铲斗挖掘力  Digging force of bucket

57kN

斗杆挖掘力  Digging force of bucket arm

38kN

A´

大挖掘半径  Max. digging radius

6325mm

A

大地面水平挖掘半径  Max. ground digging radius

6170mm

B

大挖掘深度  Max. digging depth

4245mm

C

大挖掘高度  Max. digging height

7100mm

D

大卸载高度  Max. dumping height

5066mm

三、技术参数TECHNICALSPECIFICATIONS

操作重量  Operating Weight

8.0T

铲斗容量    Bucket capacity

0.5m³

发动机型号  Engine model

洋马

型式    Type

4缸水冷直喷   4cylinders water   cooling DI

排量     Capacity

3.3L

功率输出    Power output

42.9kW/58.3马力/2200rpm

行走刹车Travel brakes

液压油释放    Hydraulic oil released

行走速度    Travel speed

5/3km/h

爬坡能力    Grade ability

35°

主泵型式    Main pump type

斜盘式    Load-sensing pump

大流量  Max. discharge flow

2-79.2L/min(165L/min)

回转速度    Swing speed

0-12r/min

燃油箱    Fuel tank

180L

液压油箱    Hydraulic gasoline tank

180L
